| Aircraft Model |

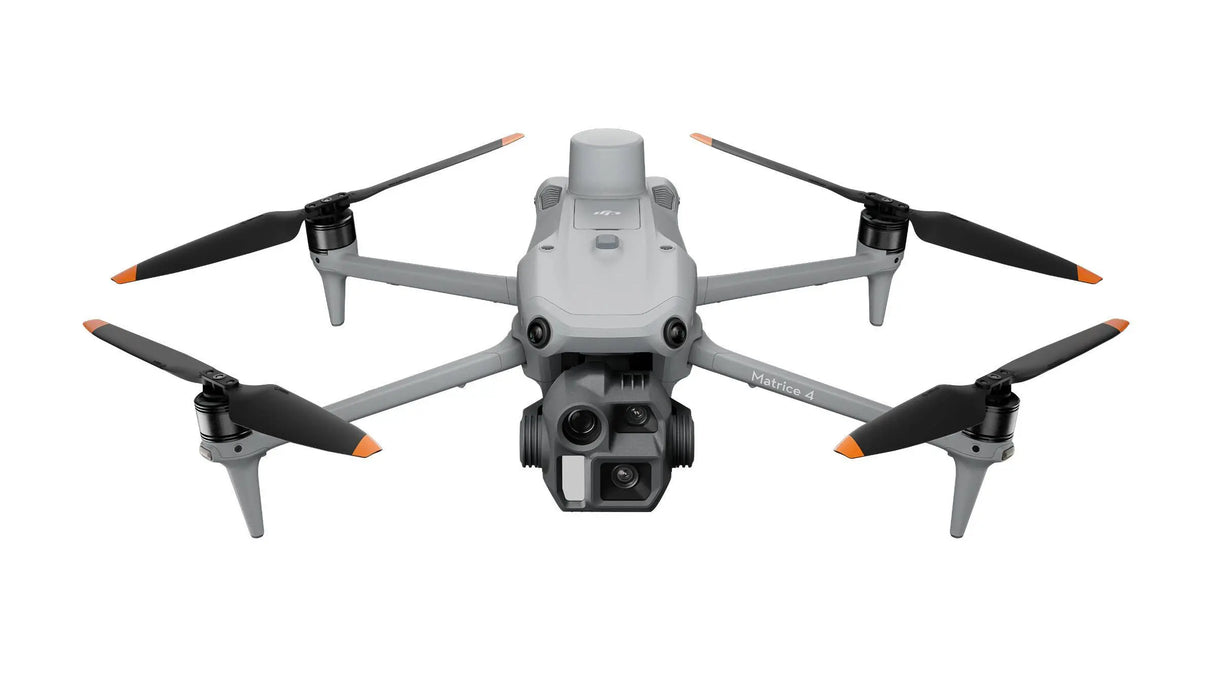

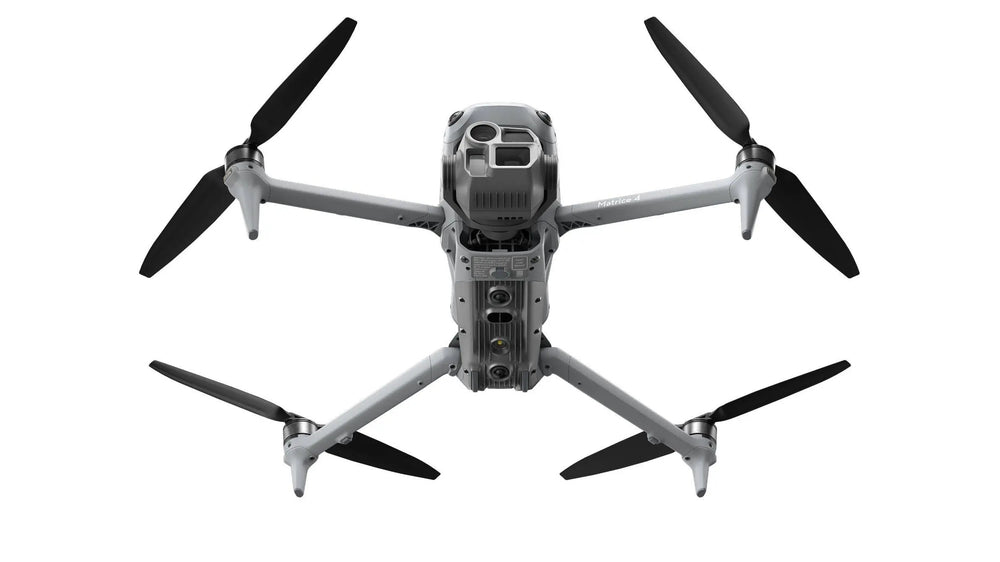

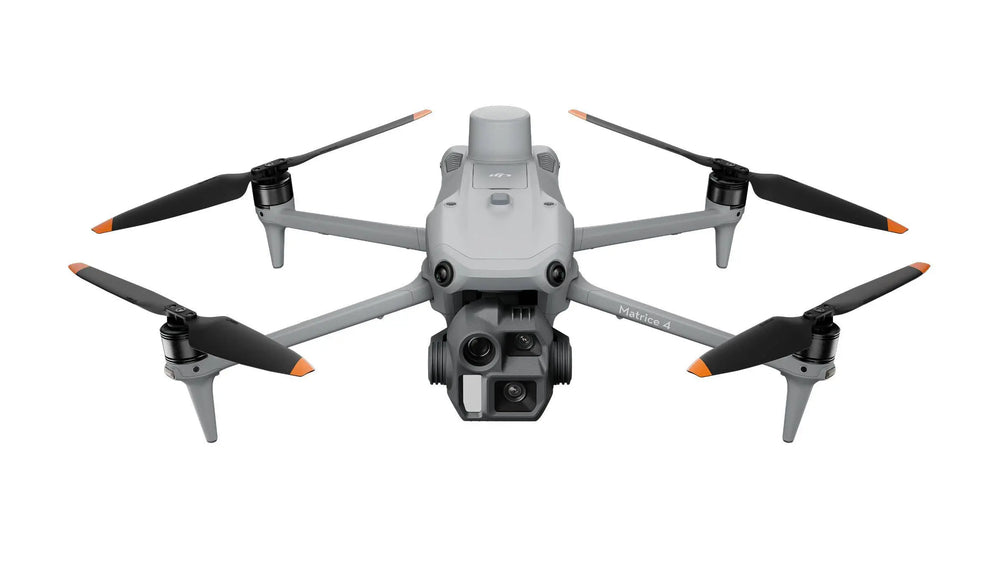

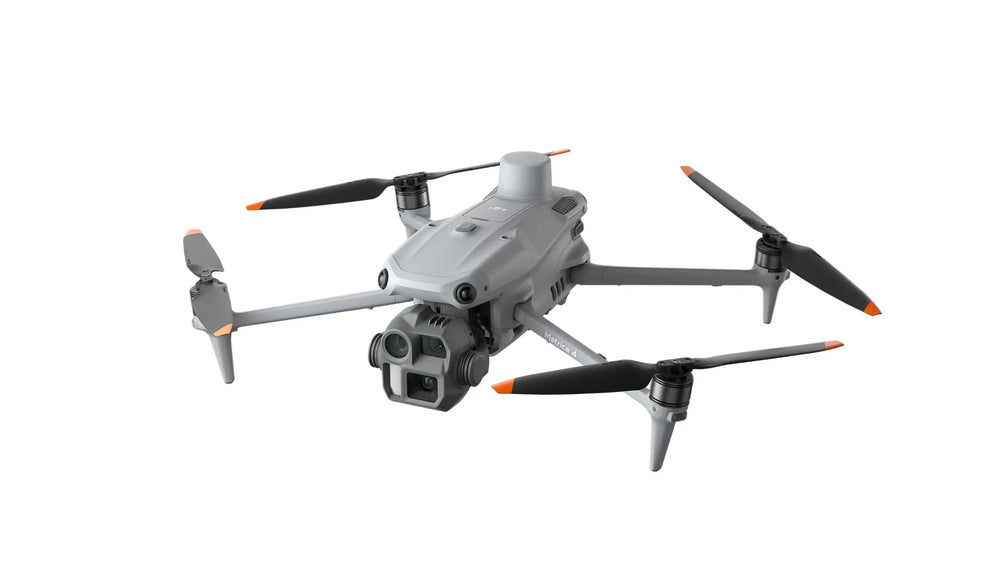

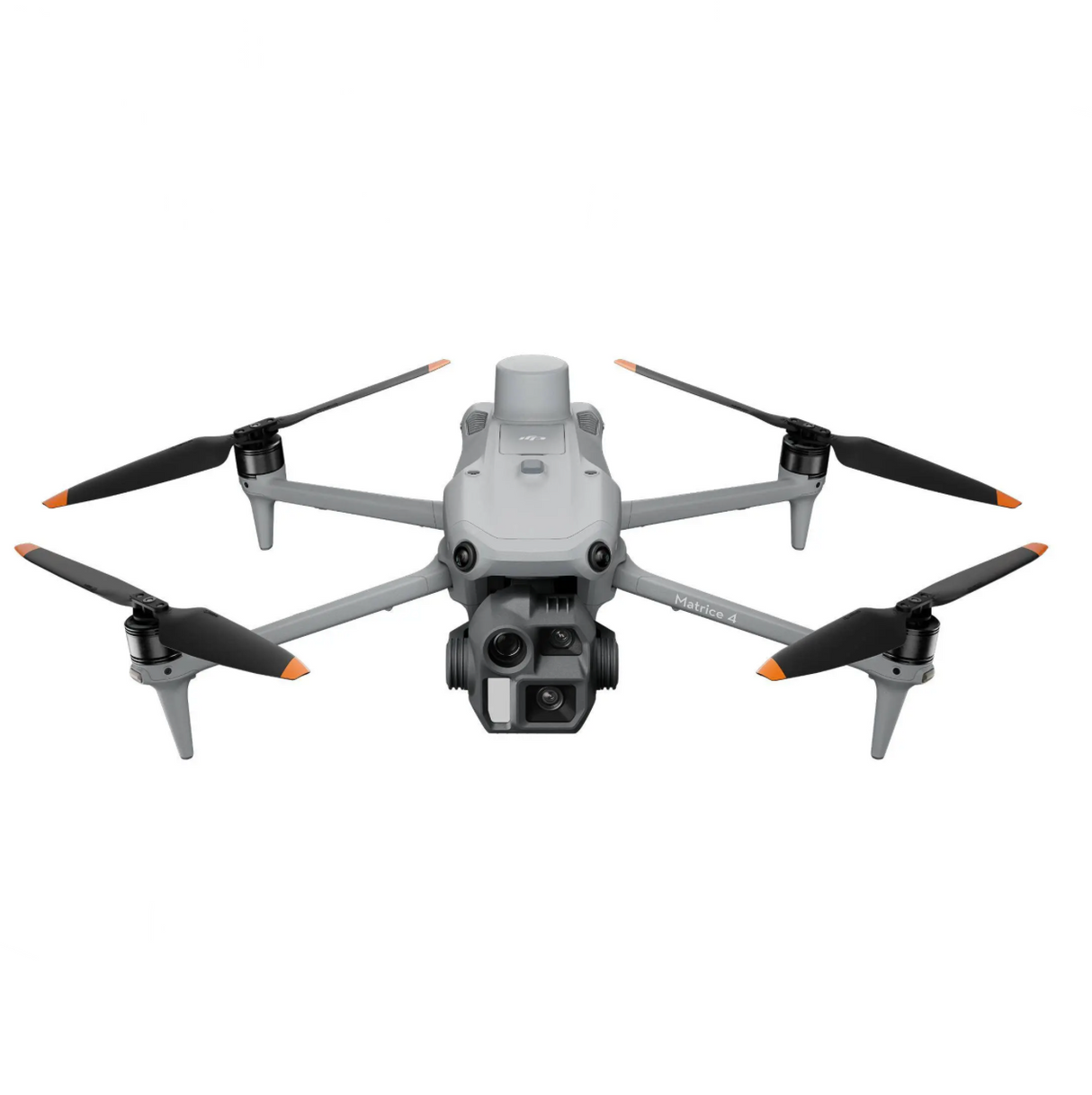

DJI Matrice 4E |
| Takeoff Weight (with propellers) |
1219 g |
| Takeoff Weight (with low-noise propellers) |
1229 g |
| Max Takeoff Weight |
Standard propellers: 1420 g; Low-noise propellers: 1430 g |
| Dimensions (Folded) |
260.6 × 113.7 × 138.4 mm (L×W×H) |
| Dimensions (Unfolded) |
307.0 × 387.5 × 149.5 mm (L×W×H) |
| Max Payload |
200 g |
| Propeller Size |
10.8 in |
| Diagonal Wheelbase |
438.8 mm |
| Max Ascent Speed |
10 m/s |
| Max Ascent Speed (with accessories) |
6 m/s |
| Max Descent Speed |
8 m/s |
| Max Descent Speed (with accessories) |
6 m/s |
| Max Horizontal Speed |
21 m/s (forward), 18 m/s (backward), 19 m/s (sideways) |
| Max Altitude |
6000 m |
| Max Operating Altitude (with payload) |
4000 m |
| Max Flight Time (no wind) |
49 min (standard propellers), 46 min (low-noise propellers) |
| Max Hover Time (no wind) |
42 min (standard propellers), 39 min (low-noise propellers) |
| Max Flight Distance (no wind) |
35 km (standard propellers), 32 km (low-noise propellers) |
| Max Wind Resistance |
12 m/s |
| Max Pitch Angle |
35° |
| Operating Temperature |
-10°C to 40°C (14°F to 104°F) |
| GNSS |
GPS + Galileo + BeiDou + GLONASS (GLONASS requires RTK module) |
| Hovering Accuracy (windless/breezy) |
±0.1 m (Vision), ±0.5 m (GNSS), ±0.1 m (RTK) |
| RTK GNSS Accuracy |
RTK Fix: 1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical) |
| Ports |
E-Port × 1 (official accessories and third-party PSDK; no hot-swap), E-Port Lite × 1 (USB tuning + some third-party PSDK) |
| Propeller Model |
1157F (standard), 1154F (low-noise) |
| Beacon |
Built into the aircraft |
| Camera Sensor (Wide) |
4/3-inch CMOS, effective pixels: 20 MP |
| Camera Sensor (Medium Tele) |
1/1.3-inch CMOS, effective pixels: 48 MP |
| Camera Sensor (Telephoto) |
1/1.5-inch CMOS, effective pixels: 48 MP |
| Wide Lens |
FOV 84°, 24 mm equivalent, aperture f/2.8–f/11, focus 1 m to ∞ |
| Medium Tele Lens |
FOV 35°, 70 mm equivalent, aperture f/2.8, focus 3 m to ∞ |
| Tele Lens |
FOV 15°, 168 mm equivalent, aperture f/2.8, focus 3 m to ∞ |
| ISO Range |
Normal mode: ISO 100–25600; Night scene mode: Wide ISO 100–204800, Medium Tele ISO 100–409600, Tele ISO 100–409600 |
| Shutter Speed |
Wide: Electronic 2–1/8000 s, Mechanical 2–1/2000 s; Medium Tele 2–1/8000 s; Tele 2–1/8000 s |
| Max Photo Size |
Wide 5280 × 3956; Medium Tele 8064 × 6048; Tele 8192 × 6144 |
| Minimum Photo Interval |
0.5 s |
| Still Photo Modes (Wide) |
Single 20 MP; Interval 20 MP; JPEG 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s; JPEG + RAW 2/3/5/7/10/15/20/30/60 s; Smart Shooting 20 MP; Panorama 20 MP (raw), 100 MP (stitched) |
| Still Photo Modes (Medium Tele) |
Single 12 MP/48 MP; Interval 12 MP/48 MP; JPEG 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s; Smart Shooting 12 MP |
| Still Photo Modes (Tele) |
Single 12 MP/48 MP; Interval 12 MP/48 MP; JPEG 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s; Smart Shooting 12 MP |
| Video Codec |
H.264 / H.265 |
| Video Resolution |
4K 3840 × 2160 @30fps; FHD 1920 × 1080 @30fps |
| Max Video Bitrate |
H.264: 60 Mbps; H.265: 40 Mbps |
| Supported File System |
exFAT |
| Photo Format |
Wide: JPEG/DNG (RAW); Medium Tele: JPEG; Tele: JPEG |
| Video Format |
MP4 (MPEG-4 AVC/H.264) |
| Digital Zoom |
Telephoto: 16x (112x hybrid zoom) |
| Gimbal |
3-axis (tilt, roll, pan) |
| Gimbal Mechanical Range |
Tilt -140° to 50°, Roll -52° to 52°, Pan -65° to 65° |
| Gimbal Soft Limits |
Tilt -90° to 35°, Roll -47° to 47°, Pan -60° to 60° |
| Controllable Range |
Tilt -90° to 35°; Pan not controllable |
| Max Control Speed (tilt) |
100°/s |
| Angular Vibration |
±0.007° |
| Sensing System |
Omnidirectional binocular vision + 3D infrared sensor (bottom) |
| Forward Sensing |
0.4–22.5 m (binocular), up to 200 m, obstacle avoidance ≤21 m/s, FOV 90° (H) / 135° (V) |
| Backward Sensing |
0.4–22.5 m (binocular), up to 200 m, obstacle avoidance ≤21 m/s, FOV 90° (H) / 135° (V) |
| Lateral Sensing |
0.5–32 m (binocular), up to 200 m, obstacle avoidance ≤21 m/s, FOV 90° (H) / 90° (V) |
| Downward Sensing |
0.3–18.8 m, obstacle avoidance ≤10 m/s, FOV front/rear 160°, left/right 160° |
| Video Transmission System |
O4 Enterprise |
| Live View Quality |
Remote controller: 1080p/30fps |
| Operating Frequency |
2.400–2.4835 GHz; 5.725–5.850 GHz; 5.150–5.250 GHz (CE) |
| Transmission Power (EIRP) |
2.4 GHz ≤33 dBm (FCC), ≤20 dBm (CE/SRRC/MIC); 5.8 GHz <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE); 5.15–5.25 GHz <23 dBm (FCC/CE) |
| Max Transmission Distance (no interference) |
25 km (FCC), 12 km (CE), 12 km (SRRC), 12 km (MIC) |
| Max Transmission Distance (with interference) |
Strong: 1.5–5 km; Medium: 5–15 km; Micro: 15–25 km (FCC typical interference reference) |
| Max Download Speed |
20 MB/s |
| Latency |
130 ms (near-field, interference-free, 1x lens) |
| Antenna |
8 antennas, 2T4R |
| Other |
Cellular dongle compartment |
| Memory Card Requirement |
microSD U3 / Class10 / V30 or above |
| Intelligent Flight Battery Capacity |
6741 mAh |
| Battery Voltage |
14.76 V |
| Max Charging Voltage |
17.0 V |
| Cell Type |
Li-ion 4S |
| Energy |
99.5 Wh |
| Battery Weight |
401 g |
| Recharging Temperature |
5°C to 40°C |
| Discharge Rate |
4C |
| Max Charging Power |
1.8C |
| Low-temperature charging |
Not supported |
| Cycle Count |
200 |
| Power Adapter Rated Power |
100 W |
| Charging Hub Rated Power |
100 W |
| Charging Hub Type |
4 batteries charging in sequence; supports Standard (100% SOC) and Standby (90% SOC) |
| Charging Hub Compatible Battery |
DJI Matrice 4E/T Series Intelligent Flight Battery |
| Charging Temperature |
5°C to 40°C |
| Remote Controller |
DJI RC Plus 2 Enterprise |
| Controller System Version |
Android 11 |
| Controller Screen |
7.02-inch, 1920 × 1200, 60 fps, 1400 nits, 10-point multi-touch |
| Controller Storage |
128 GB ROM + microSD expandable |
| Controller Battery |
Built-in 46.8 Wh; optional external WB37 37 Wh |
| Charging |
USB-C PD fast charging up to 20 V / 3.25 A |
| Charging Time |
2 hours (internal battery or internal + external, controller powered off, standard DJI charger) |
| Runtime |
Internal 3.8 hours; External 3.2 hours |
| Controller Output Port |
HDMI 1.4 |
| Controller GNSS |
GPS + Galileo + BeiDou; supports dynamic Home Point refresh |
| Controller Dimensions |
268 × 163 × 94.5 mm |
| Controller Weight |
1.15 kg (without external battery) |
| Supported Aircraft Models |
Matrice 4E, Matrice 4T |
| AL1 Spotlight Weight |
99 g (with bracket), approx. 91 g (without bracket) |
| AL1 Spotlight Max Power |
32 W |
| AL1 Spotlight Illuminance |
4.3 ±0.2 lux @ 100 m; 17 ±0.2 lux @ 50 m |
| AL1 Spotlight Effective Angle |
23° (10% relative illumination) |
| AL1 Spotlight Effective Area |
1300 m² @ 100 m (10% relative illumination, Normal); 2200 m² @ 100 m (10% central illuminance, Wide FOV) |
| AL1 Spotlight Modes |
Always-on and strobe |
| AL1 Spotlight Operating Temperature |
-20°C to 50°C |
| AS1 Speaker Weight |
92.5 g (with bracket), approx. 90 g (without bracket) |
| AS1 Speaker Max Power |
15 W |
| AS1 Speaker Max Volume |
114 dB @ 1 m |
| AS1 Speaker Effective Distance |
300 m |
| AS1 Speaker Modes |
Real-time broadcast (echo suppression via firmware update), recorded broadcast, media import (simultaneous transmit/play), text-to-speech (Chinese and English) |
| AS1 Speaker Operating Temperature |
-20°C to 50°C |
