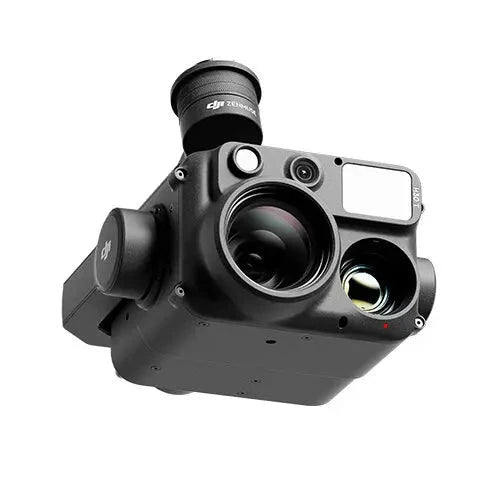

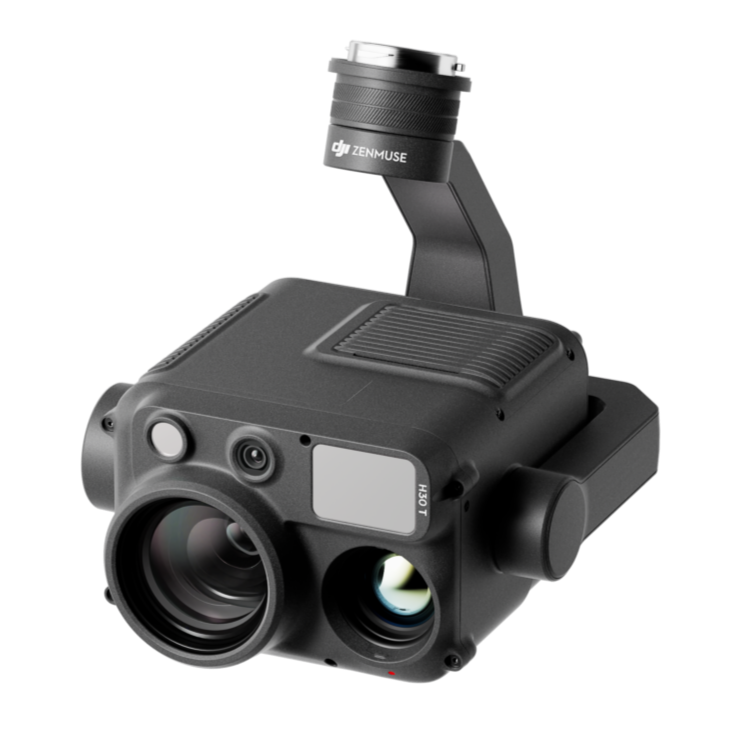

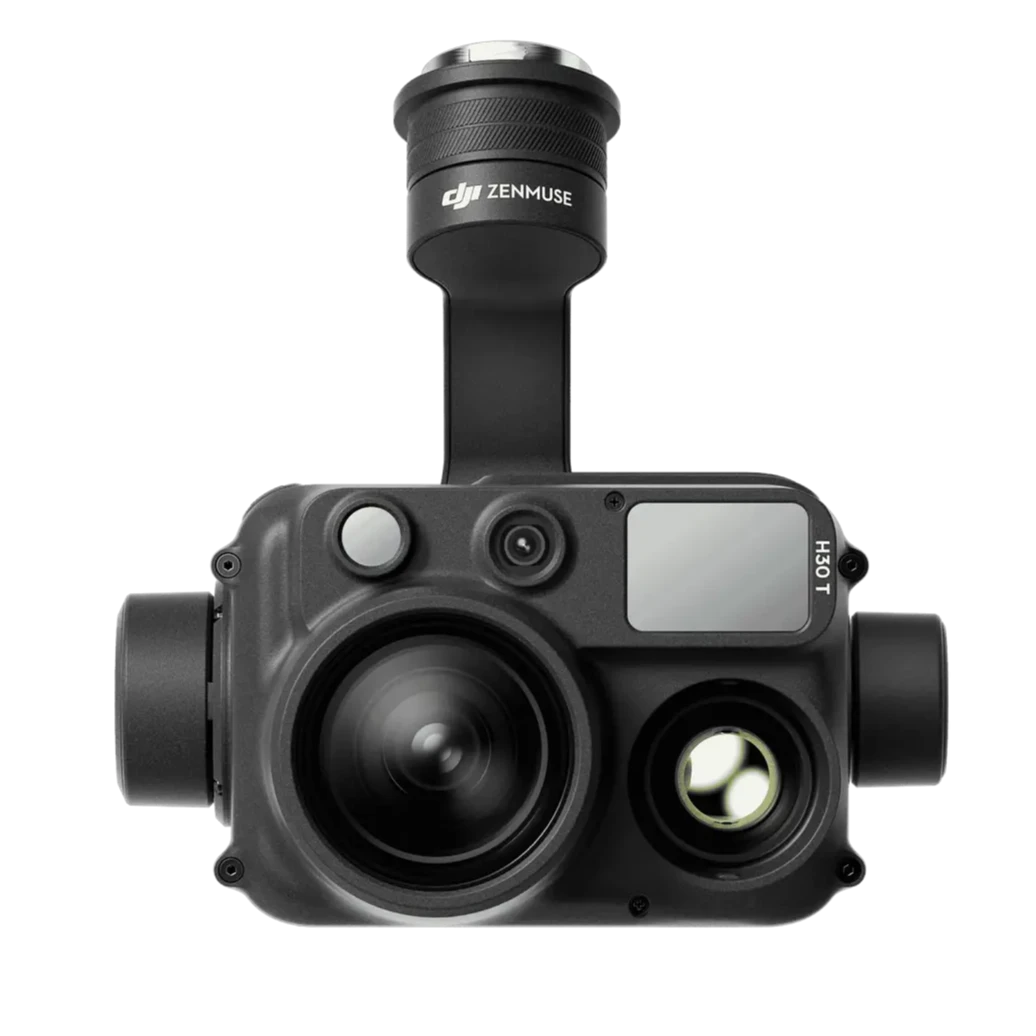

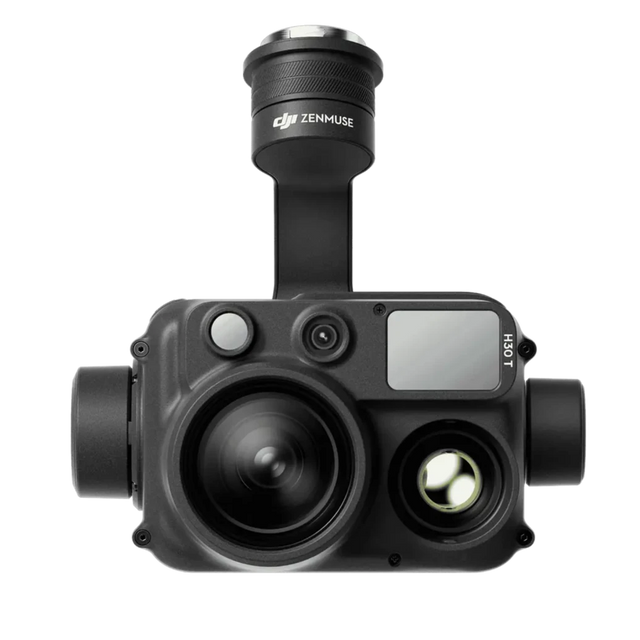

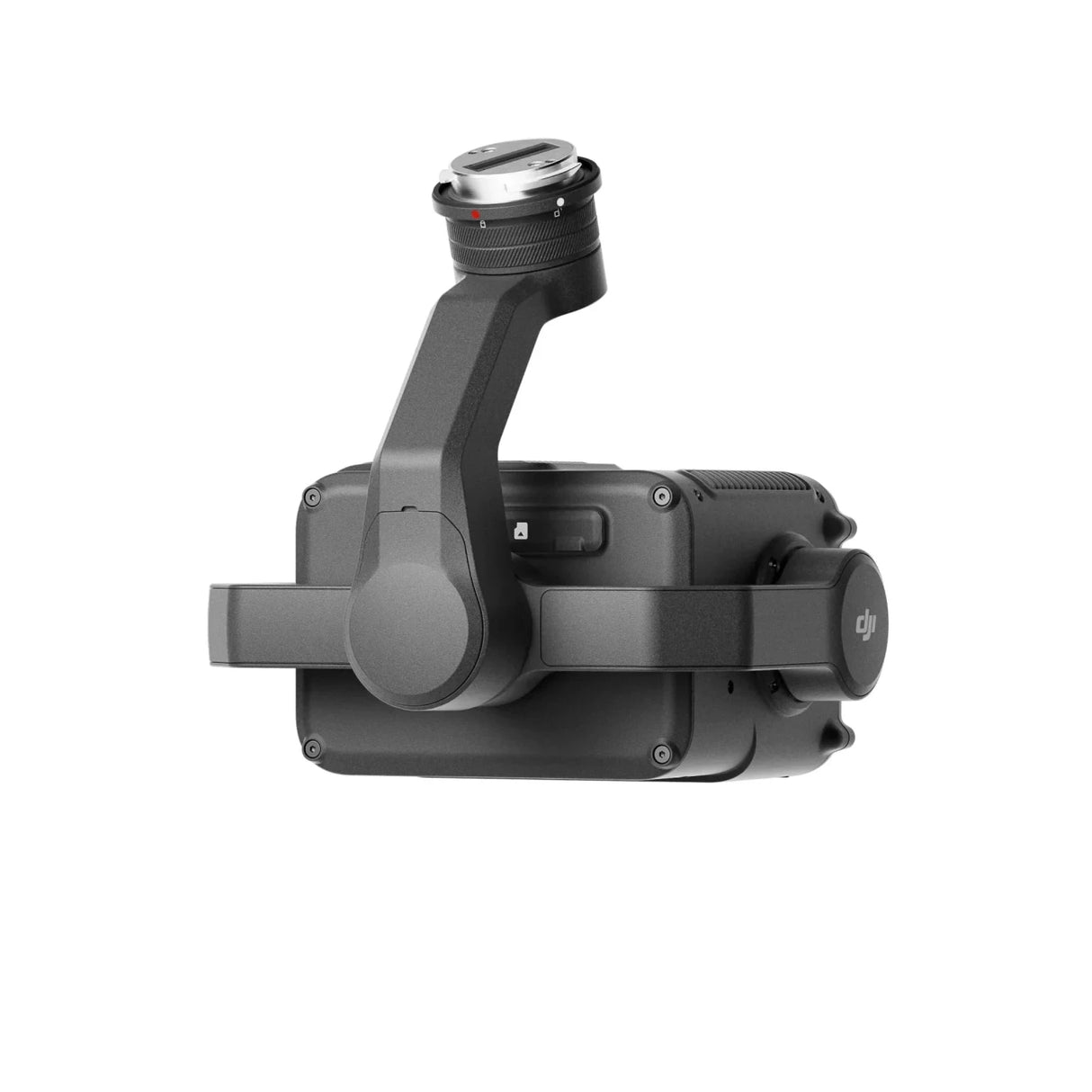

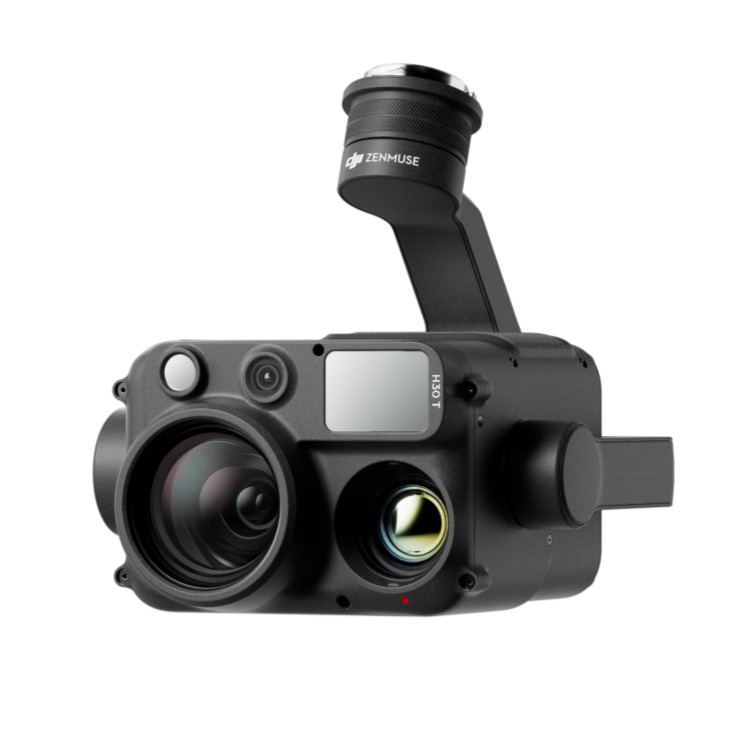

Zenmuse H30 Series—DJI’s flagship all-weather, multi-sensor gimbal payload that fuses a wide-angle camera, 40MP zoom, infrared thermal (H30T), laser range finder (up to 3000 m), and NIR auxiliary light. With advanced night capabilities, Smart Capture, Electronic Dehazing, and enterprise-grade security, H30 elevates public safety, power inspections, water conservation, oil & gas, and forestry operations—day or night, in harsh conditions.
- Five-in-one sensor stack: wide, zoom, thermal (H30T), LRF, NIR auxiliary light
- Long-reach clarity: 40MP zoom, up to 34× optical and 400× digital zoom with enhanced stabilization
- 3000 m LRF: Positioning with linear distance, altitude, and GPS coordinates
- Night mastery: Night Scene (full-color) + B/W Night Vision with IR Light and NIR illumination for low-light SAR and security
- Thermal power (H30T): 1280×1024 thermal, up to 32× digital, UHR Infrared Image at high zoom, High-Res mode for subtle deltas
- Extreme temps: Measure –20° to 1600°C with an infrared density filter (accessory)
- Smart imaging: Smart Capture auto-optimizes dynamic scenes; Electronic Dehazing cuts haze/smog (low/high levels)
- Rugged & ready: IP54, –20° to 50°C operating range
- Mission capture insurance: Pre-Recording (10/15/30 s across all cameras)
- Enterprise security: microSD encryption (Security Code), AES-256 link encryption, one-click log clearance
- Cloud ops: Live views and collaboration in DJI FlightHub 2 for coordinated command
Zenmuse H30 Series
General
| Product Name |
Zenmuse H30 Series (H30 / H30T) |
| Dimensions |
170 × 145 × 165 mm (L×W×H) |
| Weight |
920 ± 5 g |
| Power |
H30: 26 W • H30T: 28 W |
| Ingress Protection |
IP54
Under lab conditions per IEC60529; rating may decrease with wear.
|
| Supported Aircraft |
Matrice 400 • Matrice 350 RTK • Matrice 300 RTK (requires DJI RC Plus) |
Environment
| Operating Temperature |
−20° to 50° C (−4° to 122° F) |
| Storage Temperature |
−20° to 60° C (−4° to 140° F) |
Gimbal
| Stabilization |
3-axis (tilt, roll, pan) |
| Angular Vibration |
Hover: ±0.002° • Flight: ±0.004° |
| Mounting |
Detachable DJI SKYPORT |
| Mechanical Range |
Tilt −132.5° to +73° • Roll ±60° • Pan ±328° (structural limit) |
| Controllable Range |
Tilt −120° to +60° • Pan ±320° |
| Modes |
Follow • Free • Re-center |
Zoom Camera
| Sensor |
1/1.8" CMOS • 40 MP effective |
| Lens |
7.1–172 mm actual (33.4–809.3 mm equiv.) • f/1.6–f/5.2 • DFOV 66.7°–2.9° |
| Focus / Exposure |
MF, AFC, AFS • Manual/Auto • EV ±3.0 (1/3 steps) • Spot/Average metering • AE Lock |
| Shutter |
Electronic 1/8000–2 s |
| ISO |
Single Shot: 100–25600 • Night Scene: 100–819200 |
| Video (Single Shot) |
3840×2160@30fps • 1920×1080@30fps |
| Video (Night Scene) |
1920×1080@25/15/5fps |
| Formats / Codec |
MP4 • H.264/H.265 • CBR/VBR • Subtitles supported |
| Max Photo Size |
7328×5496, 3664×2748 • JPG |
Wide-Angle Camera
| Sensor |
1/1.3" CMOS • 48 MP effective |
| Lens |
6.72 mm actual (24 mm equiv.) • f/1.7 • DFOV 82.1° |
| Focus / Exposure |
MF, AFC, AFS • Manual/Auto • EV ±3.0 (1/3) • Spot/Average • AE Lock |
| Shutter |
Electronic 1/8000–2 s |
| ISO |
Single Shot: 100–25600 • Night Scene: 100–409600 |
| Video (Single Shot) |
3840×2160@30fps • 1920×1080@30fps |
| Video (Night Scene) |
1920×1080@25/15/5fps |
| Formats / Codec |
MP4 • H.264/H.265 • CBR/VBR • Subtitles supported |
| Max Photo Size |
8064×6048, 4032×3024 • JPG |
Infrared Thermal Camera (H30T)
| Imager / Pixel Pitch |
Uncooled VOx Microbolometer • 12 μm |
| Lens |
24 mm (52 mm equiv.) • f/0.95 • DFOV 45.2° |
| Digital Zoom |
32× (equiv.) |
| Video |
1280×1024@30fps • MP4 • H.264/H.265 • CBR/VBR • Subtitles supported |
| Photo |
1280×1024 • R-JPEG |
| Spectral Band |
8–14 μm • NETD ≤ 50 mK @ f/1.0 |
| Temp Measurement |
Spot • Area • Center point • Alerts • Sun burn protection • FFC Auto/Manual |
| Ranges |
High Gain: −20° to 150° C; −20° to 450° C (with IR density filter)
Low Gain: 0° to 600° C; 0° to 1600° C (with IR density filter) |
| Palettes |
White Hot, Black Hot, Tint, Iron Red, Rainbow 1/2, Medical, Arctic, Fulgurite, Hot Iron |
Laser Range Finder
| Wavelength |
905 nm • Class 1 |
| Range |
3–3000 m (typical: grasslands 2000 m, woodlands 1900 m, road 1700 m)* |
| Accuracy |
≤500 m: ±(0.2 m + distance × 0.15%) • >500 m: ±1.0 m |
| Spot Size |
~50×450 mm @100 m • ~450×4500 mm @1000 m |
| Limits |
AEL 260 nJ • Ref aperture 18 mm • Max pulse emission power (≤5 ns): 52 W |
* Range varies by target material/shape, angle, lighting, and weather. Multi-target hits disperse energy and can reduce range.
NIR Auxiliary Light
| Wavelength / FOV |
850 nm • FOV 4.6±0.6° (round) |
| Safety |
Class 1 |
| Illumination |
~8 m diameter circle @100 m |
Special Features
| Capabilities |
Hybrid Optical Zoom 34× • Max Zoom 400× • Link Zoom • Click to Aim • High-Res Grid Photo • Night Scene • Timestamp • Smart Capture • Video Pre-Recording • UHR Infrared Image |
Data Storage
| microSD Requirement |
U3/Class10/V30 or above (use recommended list) |
| File System |
exFAT |
| Recommended Cards |
Lexar 1066x V30 A2 64/128/256/512GB • Kingston Canvas Go! Plus V30 A2 64/128/256/512GB |
| Security Code |
Supported (encrypts camera microSD). Decrypt via DJI Decrypt Tool (Windows). |
Post-Processing Software
| Mapping |
DJI Terra • DJI FlightHub 2 |
| Infrared Analysis |
DJI Thermal Analysis Tool 3 |
