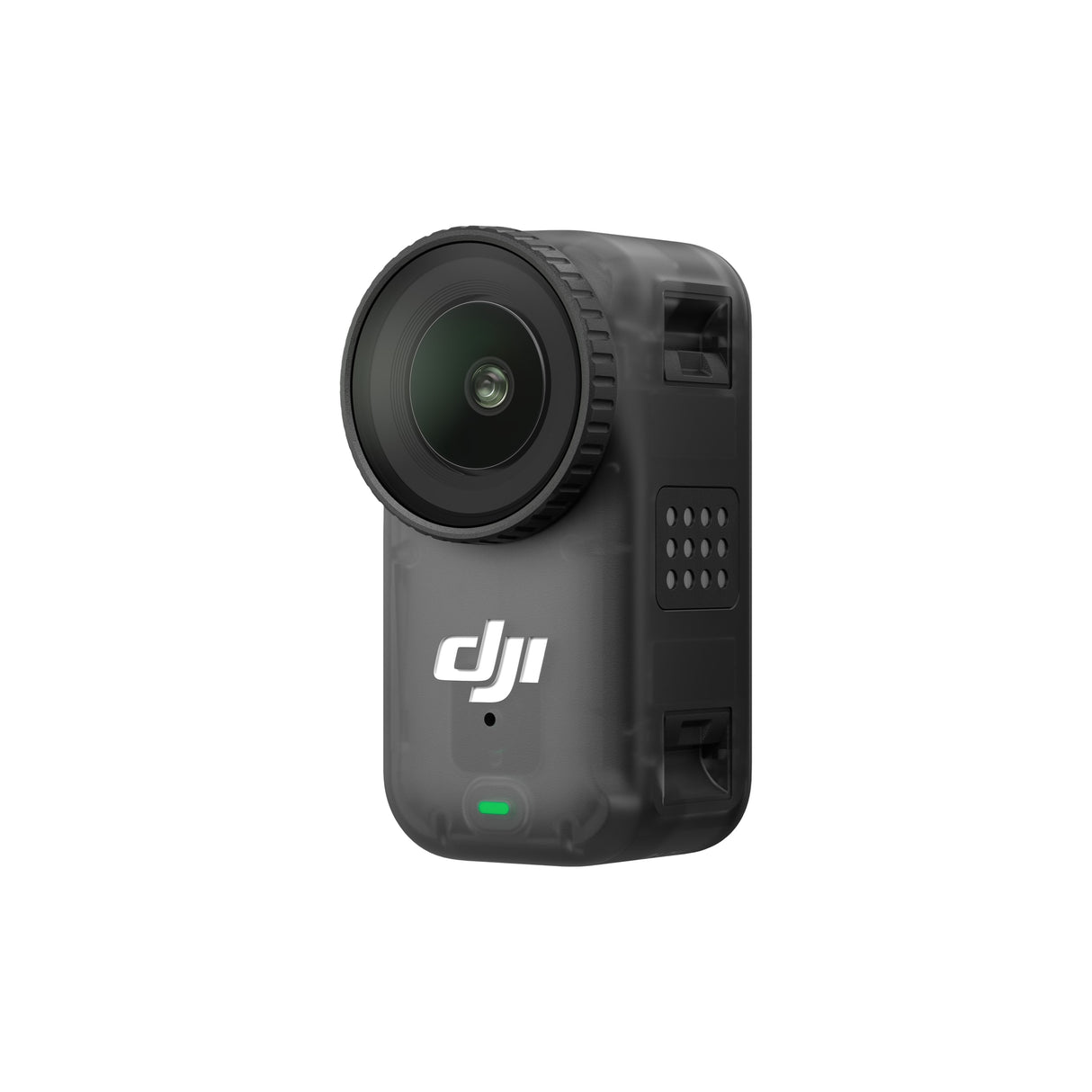

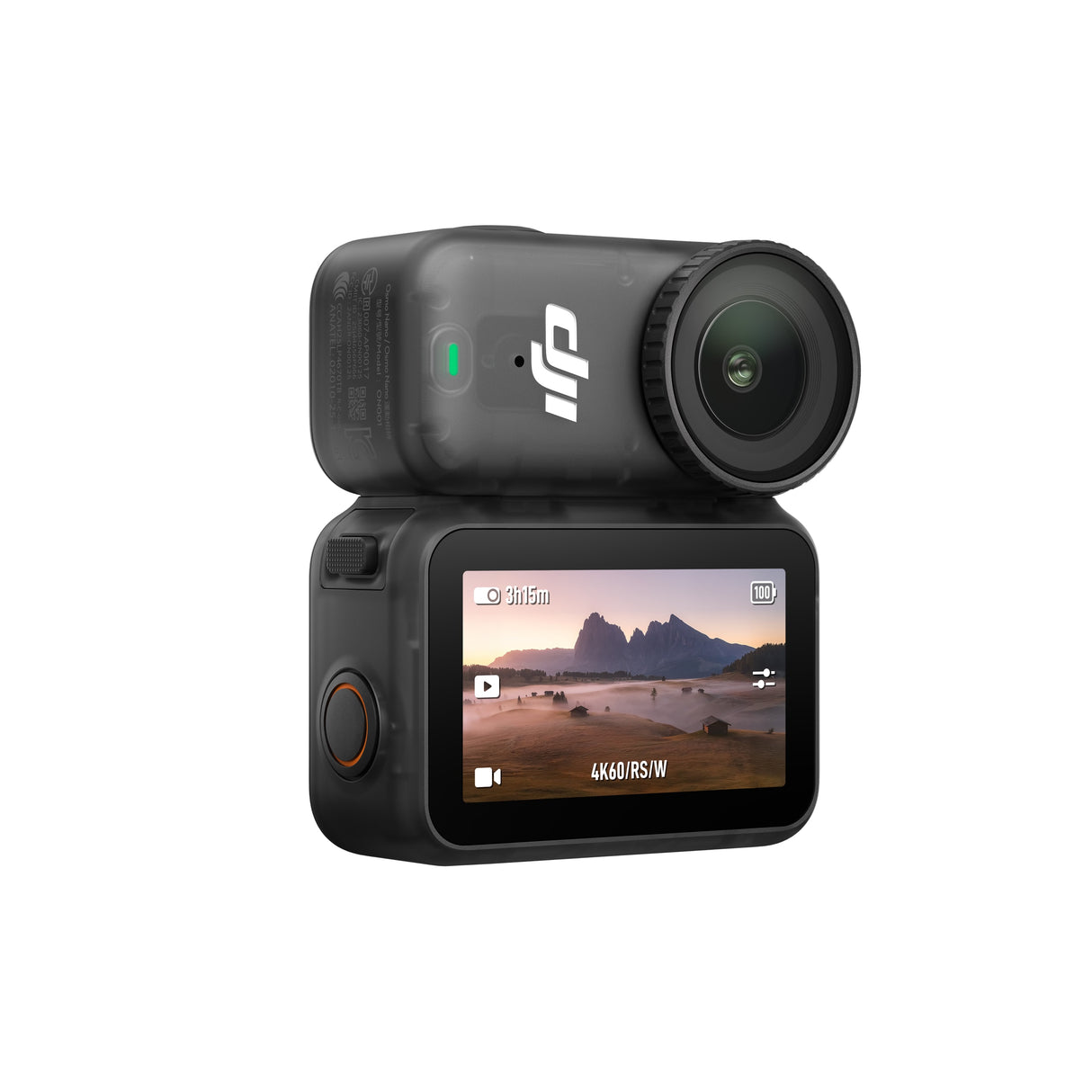

DJI Osmo Nano—a featherweight, wearable 4K/60fps camera built for cycling, running, travel and everyday life. Its next-gen 1/1.3″ sensor captures crisp detail with wide 143° FOV, 10-bit D-Log M for cinematic color, and SuperNight for low light. The dual-sided magnetic design snaps onto hats, headbands, straps and mounts in seconds, unlocking creative angles hands-free. Keep horizons level with HorizonBalancing or lock down motion with RockSteady 3.0. Shoot longer with fast charging and up to 200 minutes of recording when paired with the Multifunctional Vision Dock. Get live view + remote control on the built-in OLED touch dock, connect OsmoAudio™mics directly for clean stereo or dual-source audio, and send footage quickly with USB 3.1 (up to 600 MB/s) or Wi-Fi 6via DJI Mimo editing templates.
- 1/1.3″ Sensor + 4K/60fps (4K/120 slow-mo supported) with ~13.5 stops dynamic range.
- 143° Ultra-Wide FOV for immersive POVs.
- 10-bit & D-Log M: over a billion colors and flexible grading.
- Two Stabilization Modes: HorizonBalancing (±30° at up to 4K/60) & RockSteady 3.0.
- Wearable, Dual-Sided Magnetic Design: snap to hats, headbands, lanyards, or mounts.

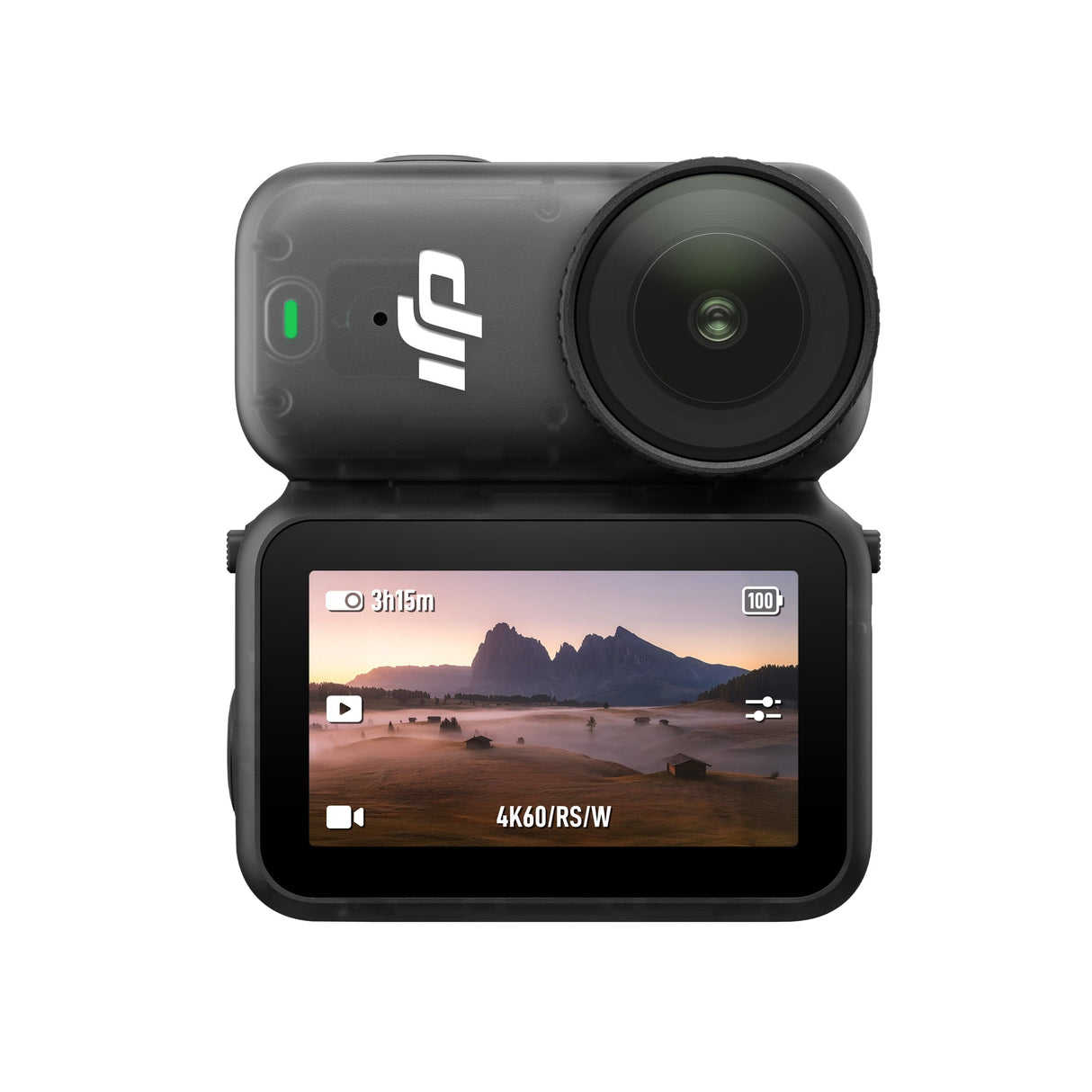

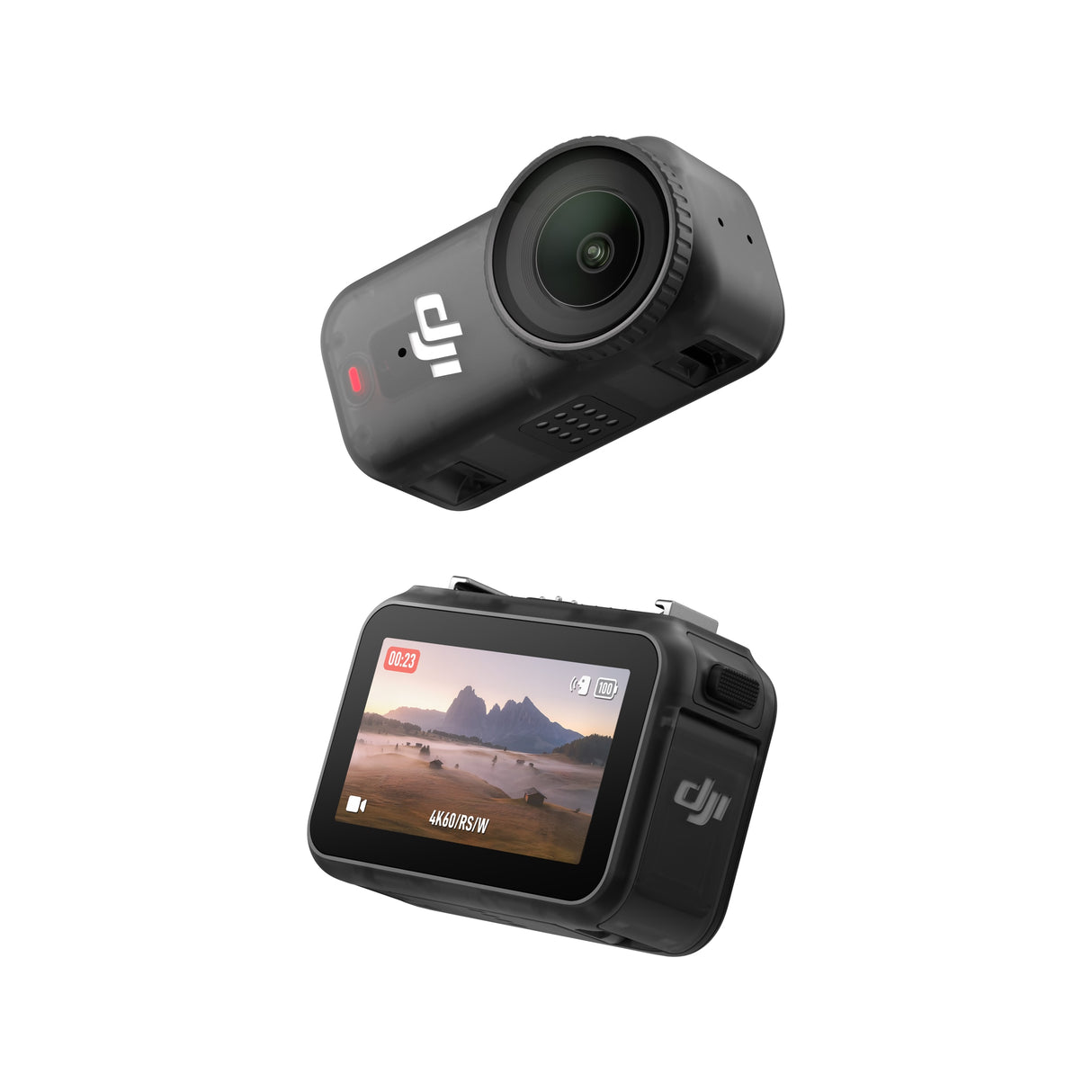

- Multifunctional Vision Dock: OLED live view/remote, fast charge, microSD slot, IPX4 splash protection, and extended runtime (up to 200 min at 1080p/24).
- Direct Mic Connection (OsmoAudio™): record up to two transmitters without a receiver; stereo onboard mics.
- 10 m Waterproof Camera (without housing).
- Fast Transfers: contact pins USB 3.1 up to 600 MB/s; Wi-Fi 6 in Mimo.
- Smart Shooting: horizontal/vertical, Auto Recording, Nod/Pat triggers, Pre-Rec.
- DJI Mimo App: one-tap templates, sports dashboards, pro filters, live photos.
DJI Osmo Action 5 Pro
|
| Dimensions |
Camera: 57.3 × 29.5 × 28 mm • Multifunctional Vision Dock: 59.1 × 42.2 × 22.3 mm |
| Weight |
Camera: 52 g • Multifunctional Vision Dock: 72 g |
| Waterproof |
Camera: Up to 10 m
Camera + Dock: IPX4 splash resistant
Note: Tighten the Glass Lens Cover before use. Avoid high-pressure or hot spring environments.
|
| Microphones |
2 built-in microphones |
| Touchscreen |
1.96" display • 326 ppi • Resolution: 314 × 556 • Max brightness: 800 cd/m² |
| Supported SD Cards |
microSD up to 1 TB |
| Recommended SD Cards |
Lexar SILVER PLUS: 64GB–1TB (U3 A2 V30)
Kingston Canvas Go! Plus: 64GB–1TB (U3 A2 V30) |
| CAMERA |
| Sensor |
1/1.3″ CMOS |
| Lens |
143° FOV • f/2.8 • Focus range: 0.35 m–∞ |
| ISO Range |
Photo: 100–25600 • Video: 100–25600 |
| Shutter Speed |
Photo: 1/8000–30 s • Video: 1/8000 s to FPS limit |
| Max Photo Resolution |
6880 × 5160 (≈35 MP) |
| Photo Modes |
Single, Countdown (0.5–10 s), Burst (up to 30 images / 3 s) |
| Video Resolution |
4K (4:3): 3840×2880@24/25/30/48/50fps
4K (16:9): 3840×2160@24/25/30/48/50/60fps
2.7K (4:3): 2688×2016@24/25/30/48/50/60fps
2.7K (16:9): 2688×1512@24/25/30/48/50/60fps
1080p (4:3): 1920×1440@24/25/30/48/50/60fps
1080p (16:9): 1920×1080@24/25/30/48/50/60fps |
| Slow Motion |
4K: 4× (120fps) • 2.7K: 4× (120fps) • 1080p: 8× (240fps) or 4× (120fps) |
| Hyperlapse |
4K/2.7K/1080p@25/30fps, Auto or ×2–×30 speeds |
| Timelapse |
4K/2.7K/1080p@25/30fps • Intervals: 0.5 s–60 min • Duration: 5 min–∞ |
| Stabilization |
EIS: RockSteady 3.0 • HorizonBalancing (up to 4K@60fps)
EIS not available in Slow Motion or Timelapse modes.
|
| Pre-Recording |
Duration: 5/10/15/30 s, or 1/2/5 min |
| Max Video Bitrate |
120 Mbps |
| File System |
exFAT |
| Photo Format |
JPEG / RAW |
| Video Format |
MP4 (HEVC) |
| Built-in Storage |
64GB version: 48GB usable • 128GB version: 107.6GB usable |
| Audio Recording |
48kHz / 16-bit AAC |
| BATTERY |
| Type |
Li-ion 1S (Camera & Dock) |
| Capacity |
Camera: 530 mAh • Dock: 1300 mAh |
| Energy |
Camera: 2.041 Wh • Dock: 5.031 Wh |
| Voltage |
Camera: 3.85 V • Dock: 3.87 V |
| Operating Time |
Camera: 90 min (1080p/24fps)
Camera + Dock: 200 min (1080p/24fps)
Endurance Mode: 4K/60fps continuous for over 50 min |
| Operating Temp. |
-20° to 45°C (-4° to 113°F) |
| Charging Temp. |
5° to 40°C (41° to 104°F) |
| CONNECTION |
| Wi-Fi |
Wi-Fi 6 (802.11 a/b/g/n/ac/ax) • 2.4GHz & 5.8GHz bands |
| Wi-Fi Power (EIRP) |
2.4GHz: <23dBm (FCC), <20dBm (CE) • 5.8GHz: <23dBm (FCC), <14dBm (CE) |
| Bluetooth |
Camera: BLE 5.1 • Dock: BLE 5.4 |
| Bluetooth Power |
Camera: <13dBm • Dock: <10dBm |
| Transmission Range |
Wireless range (camera to dock): up to 10 m (unobstructed) |
*Tested at 25°C (77°F) room temperature under controlled conditions (1080p/24fps, RockSteady ON, Wi-Fi OFF, screen OFF). Actual results vary by settings, environment, and usage.
